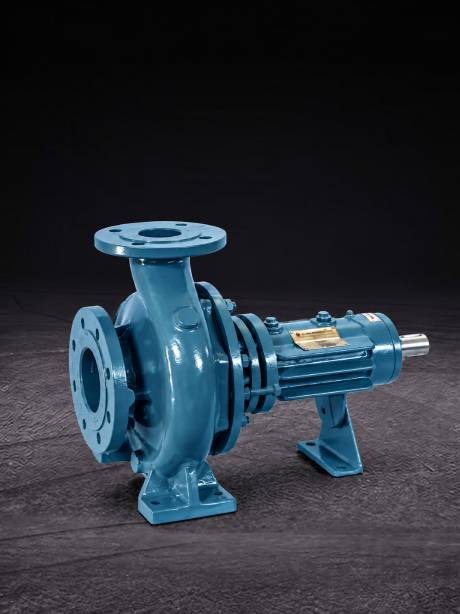

Thermic Fluid Hot Oil Pump ( JKCP )
Request pricing
- 12-month warranty
- Pan-India support
- 24/7 service support
- Free application assessment
Description
Designed for durability and efficiency.
Smart Design Features
• Main dimensions according to DIN 24256 (ISO 2858).
• No need to cool the pump externally. Thanks to mechanical design, the temperature drops from casing to the bearing rapidly with the help of natural convection.
• The shaft is designed according to the minimum heat transfer criteria.
• The mechanical seal stands between two roller bearings and close to the roller bearing on the coupling side. This gives the mechanical seal longer working life since it is on a lower temperature region.
• The bearing housing features fins to enhance natural convection.
• Maximum component interchangeability – identical parts fit multiple pump sizes, simplifying maintenance and reducing spare part inventory.
• Single entry, closed impeller is hydraulically thrust compensated and dynamically balanced
• Maintenance is very much easier, the impeller shaft & other rotating parts being removable with no need to disconnect the suction and delivery pipes.
Material of Construction
| Material of Construction (M.O.C.) | Grey Cast Iron, Cast Steel WCB grade, Alloy Cast Steel, S.S 304, S.S 316 etc. |
Technical Specification
| Specification | Details |
|---|---|
| Type | Air Cooled, End-Suction, Horizontal, Single Stage – Thermic fluid pump. |
| Capacity | up to 1100 m3/hr |
| Head | up to 150 Meter |
| Max. Allowed Working Pressure | up to 15 kg/cm² |
| Size | 32mm to 200mm |
| Speed | up to 3500 rpm |
| Temperature | up to 400° C |
| Material of Construction (M.O.C.) | Grey Cast Iron, Cast Steel WCB grade, Alloy Cast Steel, S.S 304, S.S 316 etc. |
| Connection Type | Flange |
Applications
- Bitumen And Asphalt Heating Systems
- Heat Exchangers And Heat Transfer Systems
- Oil And Gas Refineries
- Chemical Process Heating Systems
- Petrochemical Plants
- Wood Processing & Plywood Industries
